Product Details:
|
Standard or Nonstandard
|
Nonstandard |
|
Structure
|
Piston Cylinder |
|
Power
|
Hydraulic |
|
Body Material
|
Steel |
|
Maximum Stroke
|
4000mm |
|
Shaft Diameter
|
according to customer needs |
|
Place of Origin
|
Jiangsu, China (Mainland) |
|
Model Number
|
HSG series |
|
Brand Name
|
XS |
|
type
|
piston |
Detailed Product Description

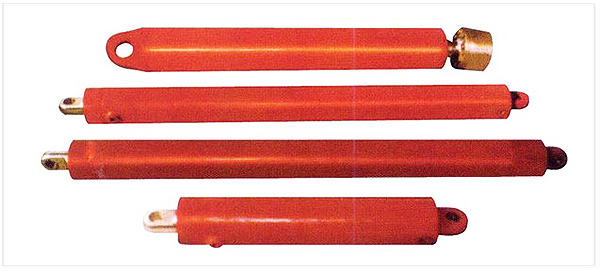

Hydraulic cylinder
1.Working presssure:16MPa
2.Bore size:40~250mm
3.Stroke up to:4000mm
4.Control safe and reliable
Compact hydraulic cylinders
We may according to the customer request design and manufacture of the standard model hydranlic pump,high oil cylinder,etc.
superiority:
1. The oil hydraulic cylinder used for metallurgy.
2. Our quality management system strictly implement ISO9001:2000.
3. Reliable quality,reasonable price,prompt delivery.
4. Ceramic piston rod can be configured.
5. Production of non-standard hydraulic cylinder according to customer request.
6. Many years of professional manufacturing experience.
7. Mature manufacturing process.
8. Strict quality control.
9. The selection of high quality hydraulic components.

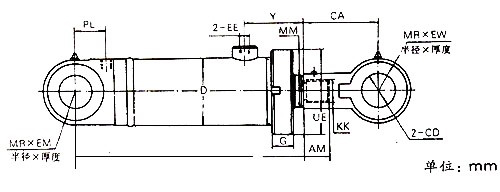

HSG-single-pole and double-acting piston hydraulic cylinder
Type selection:
HSG - L - 01 - D/d × 100 -E 2 5 0 1
HSG-single-pole and double-acting piston hydraulic cylinder
L- connecting type of L-cylinder cover: L= thread type (bore≤Φ80); K= key type (bore≥Φ80)
01 –Design No. D/d –bore (mm)/ piston rod diameter(mm)
100-Hydraulic cylinder stroke
E-Pressure level 16MPa
2 –Connecting type of cylinder head and cylinder body:1= cylinder head ear-ring with bushing; 2= cylinder head stop ring with knuckle bearing; 3= hinged shaft (for bore≥Φ80 key type connection); 4= end flange (for bore≥Φ80 key type connection); 5= central flange (for bore≥Φ80 key type connection)
Hydraulic cylinder
|
