Product Details:
|
Standard or Nonstandard
|
Nonstandard |
|
Structure
|
Piston Cylinder |
|
Power
|
Hydraulic |
|
Body Material
|
Steel |
|
Maximum Stroke
|
4000mm |
|
Shaft Diameter
|
according to customer needs |
|
Place of Origin
|
Jiangsu, China (Mainland) |
|
Model Number
|
HSG series |
|
Brand Name
|
XS |
|
type
|
piston |
Detailed Product Description
oil cylinder
1.Working presssure:16MPa
2.Bore size:40~250mm
3.Stroke up to:4000mm
4.Control safe and reliable
Oil cylinder
The HSG series double acting single rod piston cylinders are the actuator which reciprocates linearly in hydraulic cylinders.Its features are simple in structure,reliable in operation,convenient in assemble and disassemble easy in maintenance,ect.In addition,there are several varieties of connecting mode and can be provided with the cushioning devices
The oil cylinders are widely used in engineering machinery,mining machinery,lifting-transportation machinery metallurgical machinery and other machinery
Farm use hydraulic cylinder
used on havey material grabbing vehicle by us customer
elegant appearance and hing quality.

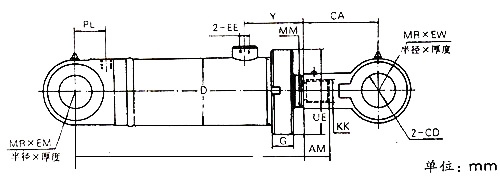

HSG-single-pole and double-acting piston hydraulic cylinder
Hydraulic cylinder for construction machines
Type selection:
HSG - L - 01 - D/d × 100 -E 2 5 0 1
HSG-single-pole and double-acting piston hydraulic cylinder
L- connecting type of L-cylinder cover: L= thread type (bore≤Φ80); K=key type (bore≥Φ80)
01 –Design No.
D/d –bore (mm)/ piston rod diameter (mm)
100-Hydraulic cylinder stroke
E-Pressure level 16MPa
2 –Connecting type of cylinder head and cylinder body:1= cylinder head ear-ring with bushing; 2= cylinder head stop ring with knuckle bearing; 3= hinged shaft (for bore≥Φ80 key type connection); 4= end flange (for bore≥Φ80 key type connection); 5= central flange (for bore≥Φ80 key type connection).
Hydraulic cylinder

|
